Project Description

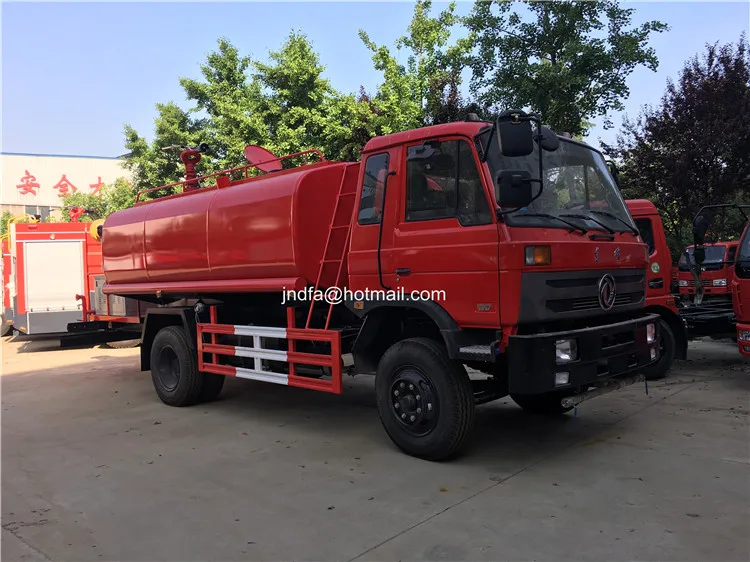

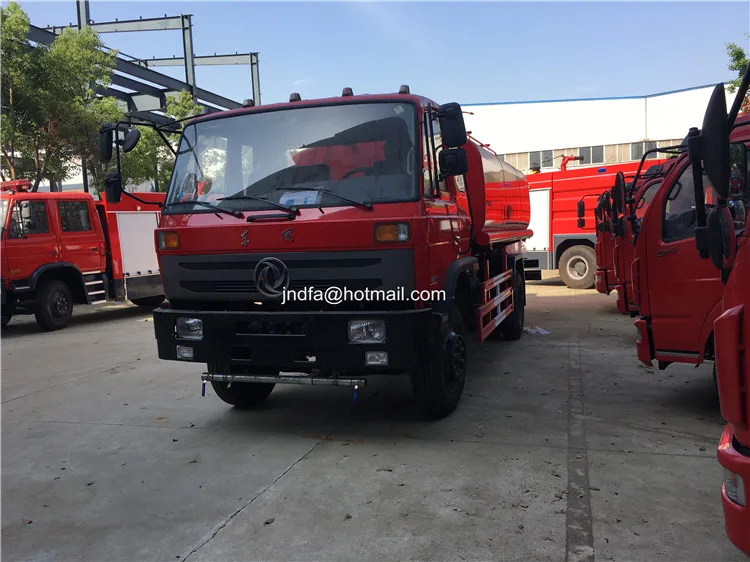

DongFeng 3 cubic~6 cubic water sprayer truck

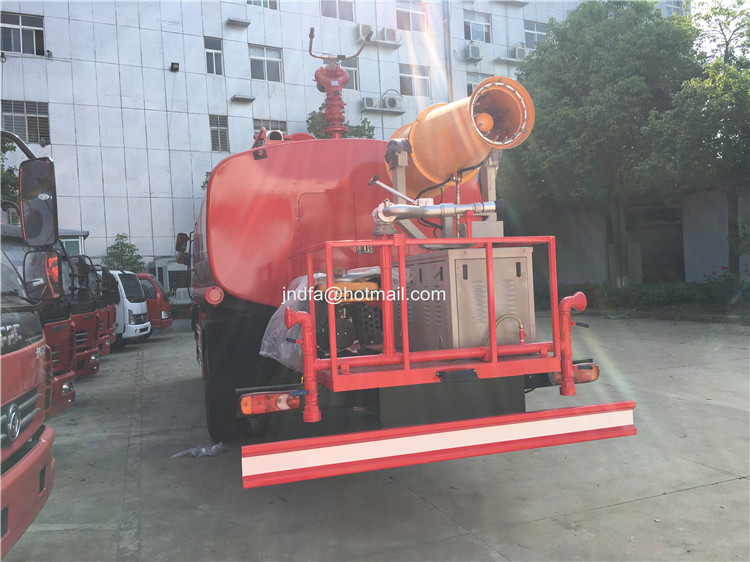

Water sprayer truck: A multi-functional vehicle that combines fire fighting and sprinkler functions. It is equipped with special fire-fighting pumps for fire engines, fire monitors, and fire-fighting power take-off devices. It is equipped with a working platform behind the tank. The top of the tank is equipped with a fire control cannon with fire interface.
Dongfeng fire truck has the functions of front flushing and side spraying, and can be used as a sprinkler to water the sprinkler. When the fire is extinguished in an emergency, the range and pressure of the fire gun can reach the same level as that of the fire truck. It is applicable to greening and fire fighting in the plant area and the dust emission in the mine. Fire fighting, community fire fighting and fire fighting.
|
|
||||
|
Product name |
Water sprayer truck |
Product model |
Water sprayer truck |
|
|
Total mass (kg) |
12450 |
Tank volumn(m3) |
7.14 |
|
|
Rated mass (kg) |
6800 |
Overall sizes(mm) |
7300×2470×2900 |
|
|
Cube weight (kg) |
5455 |
Cargo sizes(mm) |
×× |
|
|
Approach/Departure angle (°) |
19/12 |
Front/rear suspension (mm) |
1205/2145 |
|
|
Number of axes |
2 |
Wheelbase (mm) |
3950,4700,5100 |
|
|
Axles load(Kg) |
4980/7470 |
Max speed(Km/h) |
89 |
|
|
Others |
Transport medium: water; density: 1000 kg/m3; effective volume of the tank: 7.14 m3; dimensions of the tank (length × long axis × short axis) (mm): 3800 × 2100 × 1340; ABS system controller model And manufacturer: 3631010-C2000/Dongfeng Electronic Technology Co., Ltd. Brake System Co., Ltd.; side protection and rear lower protection material material: Q235, connection method: welding; rear lower protective device section size (width × height): 30 × 120 (mm), rear lower guard height from ground: 450mm. |
|||
|
[Chassis Technical Parameters] |
||||
|
Chassis Type |
EQ1120GD4GJ1 |
Chassis Name |
Cargo chassis |
|
|
Brand |
Dongfeng brand |
Manufacturer |
Dongfeng Commercial Vehicle Co., Ltd. |
|
|
Overall Dimension (mm) |
6975,7955,8785×2462×2690 |
Number of Tires |
6 |
|
|
Approach/departure Angle (°) |
25/18,25/17,25/16,24/17 |
Tire Specifications |
9.00-20 12PR,9.00R20 |
|
|
Number of Leaf Springs |
8/10+7 |
Front Wheel Tread(mm) |
1900 |
|
|
Fuel Type |
Diesel |
Rear Wheel Tread(mm) |
1800 |
|
|
Emission Standard |
Euro IV |
|||
|
Engine Model |
Manufacturer of Engine |
Displacement (ml) |
Power (Kw) |
|
|
ISF3.8s4168 ISDe160-40 YC4E160-42 ISB170 40 |
Beijing Futian Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. |
3760 4500 4260 5900 |
125 118 118 125 |
|
Waxed before shipping , shipped by RORO or bulk ship
