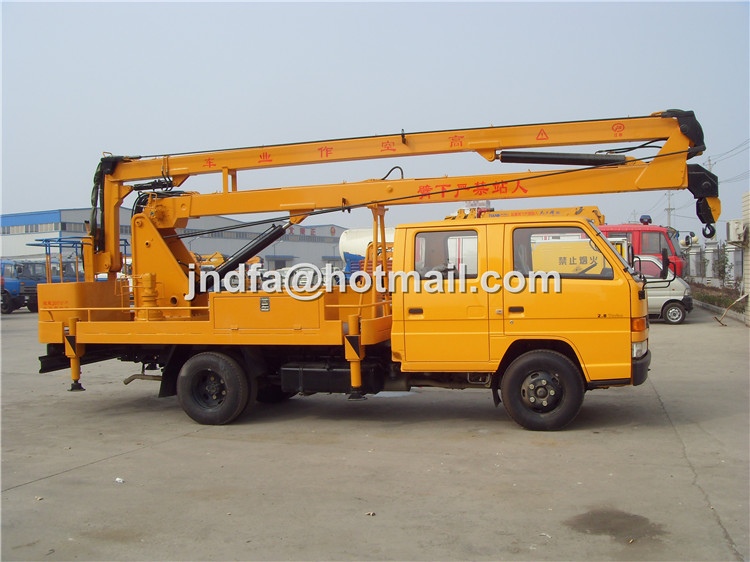

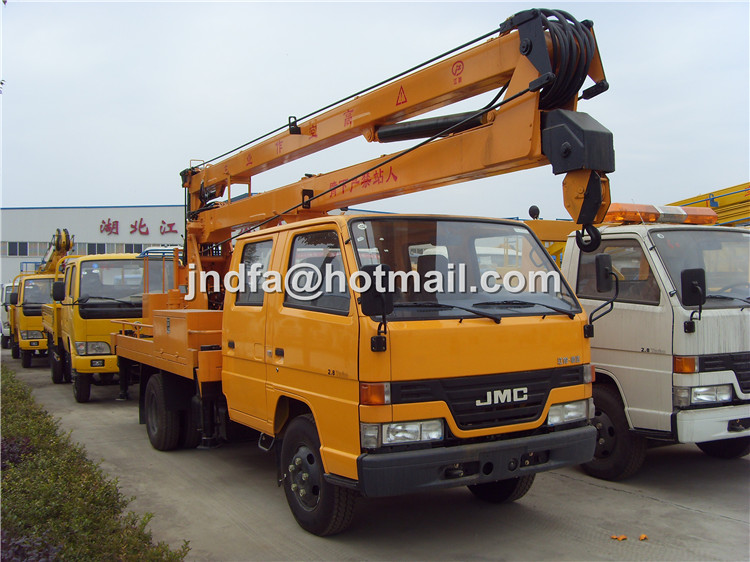

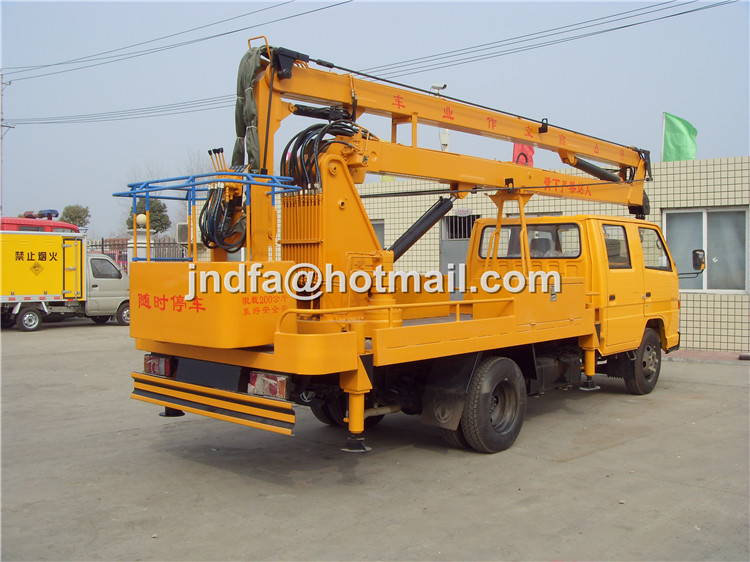

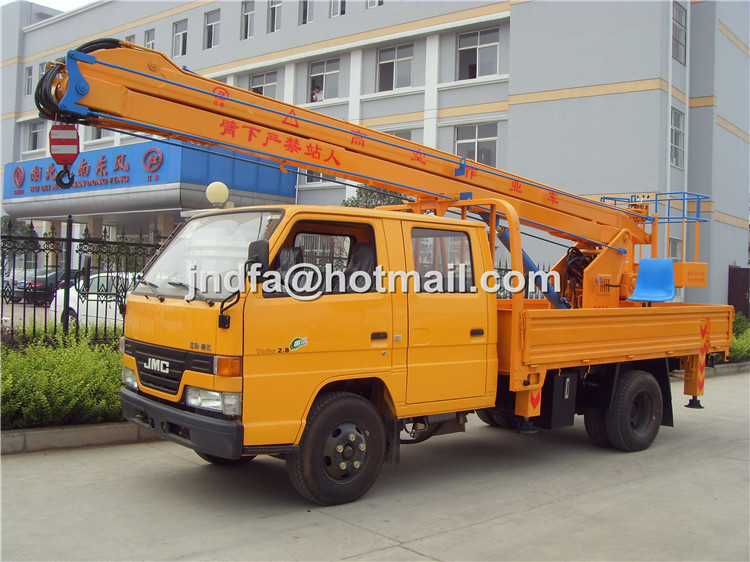

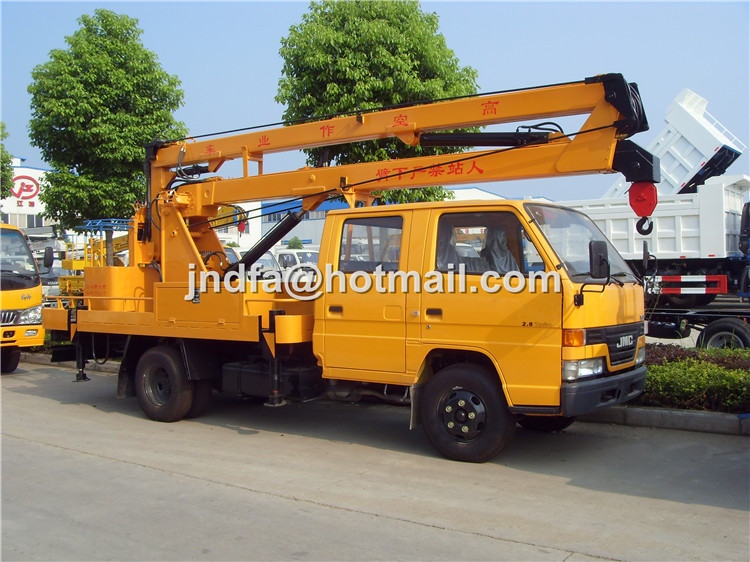

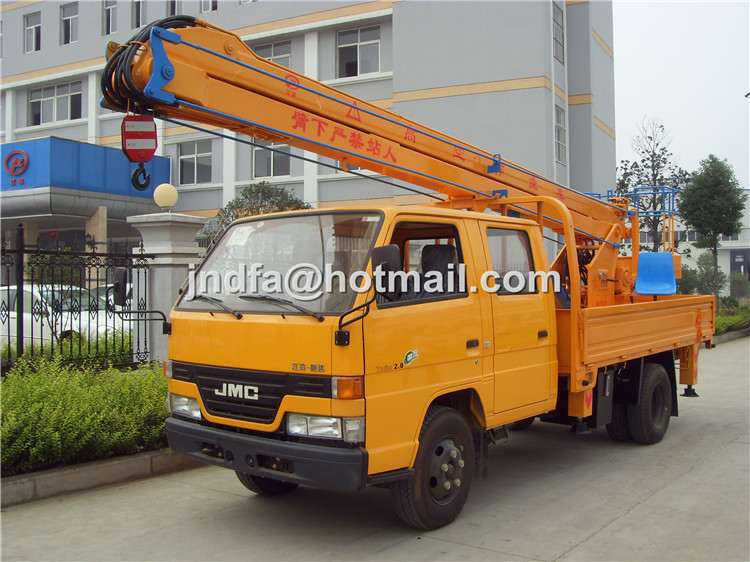

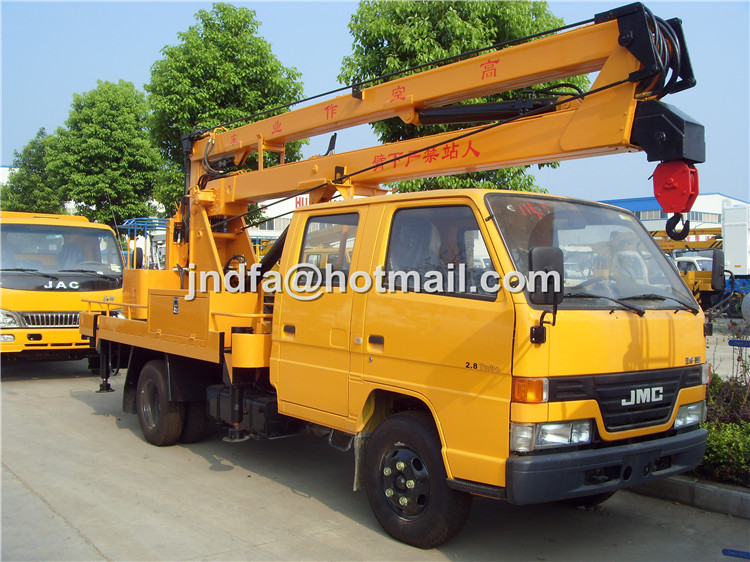

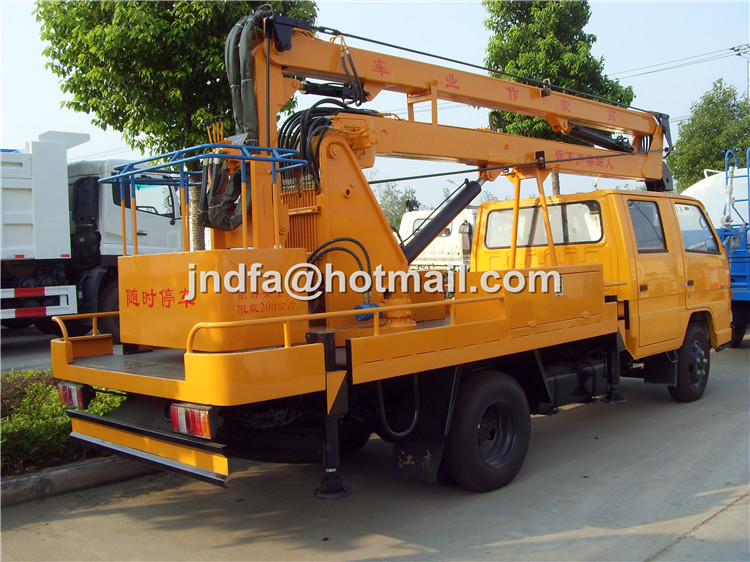

JMC Aerial Platform Truck,High Working Truck
JMC Aerial Platform Truck,High Working Truck
JMC High Working Truck Engine Model JX493ZLQ3 , 85kw ,115HP,2771CC
JDFtruck is the Chinese JMC High Working Truck manufacturer JMC High Working Truck quality have beed approved by CCC and ISO9001:2000 quality certificate ,Contact us: jndfa@hotmail.com.
Our JMC High Working Truck have a wide range of chassis brand optional , different load volume to choose .
| Vehicle Name: | JMC High Working Truck | Vehicle Category: | JMC High Working Truck | ||
| Chinese Brand: | JMC JDFTRUCK | English brand : | JMC JDFTRUCK | ||
| Notice batch : | 227 | Exemption: | No | ||
| Engine | Engine Manufacturer | Displacement (ml) | Power (kw) | ||
| JX493ZLQ3 | Jiangling motors co., LTD | 2771 | 85 | ||
| Engine brand : | JMC | Fuel type: | Diesel (mm) | ||
| Dimensions: | 7150×1950×2995(mm) | Compartment Size : | × × (mm) | ||
| The total mass : | 4665(Kg) | Payload: | 0 | ||
| Curb weight: | 4340 (Kg) | Rated Quality: | (Kg) | ||
| Quality Trailer : | (kg) | Semitrailer saddle : | |||
| Rated capacity : | ( People ) | Cab seats : | 2+3( People ) | ||
| Approach / departure angle : | 27/14(°) | Front / rear overhang : | 1015/1605(mm) | ||
| Axle load: | 1935/2730 | Wheelbase: | 3360(mm) | ||
| Number of axes: | 2 | Maximum speed: | 95(km/h) | ||
| Fuel consumption: | Spring: | 7/5+5 | |||
| Number of tires : | 6 | Tire Size: | 7.00R16LT,7.00-16LT | ||
| Front track: | 1385 | Rear track: | 1425 | ||
| Steering Type : | Steering wheel | Starting method: | |||
| Chassis Emission standard: | GB17691-2005, GB3847-2005 National | ||||
| Transmission Type: | Steering wheel | According to the standard : | |||
| Logo Enterprises : | JDFtruck | Release date: | 20160919 | ||
| Vehicle Notes : | JMC Aerial Platform Truck,High Working Truck | ||||
JMC Aerial Platform Truck,High Working Truck Chassis
| JMC truck chassis |JMC truck chassis JX1060TSG23 | ||||
| Company Name : | JMC Motor Co., Ltd. | |||
| Chassis Type: | JX1060TSG23 | Chassis Category: | II | |
| Product Name: | Truck chassis | Product Brand: | JMC | |
| Zip Code: | Catalog number : | 3 | ||
| Fuel Type: | Diesel fuel | According to the standard : | GB17691-2005(Ⅳ),GB3847-2005 | |
| Steering Type : | Steering wheel | |||
| Number of axes: | 2 | Wheelbase: | 3360 | |
| Spring: | 7/5+5 | Number of tires : | 6 | |
| Tire Size: | 7.00R16LT,7.00-16LT | Tread : | Front track1835,1750Rear track1640,1586 | |
| The total mass : | 1900 | |||
| Curb weight: | Quality Trailer : | |||
| Semitrailer saddle : | Front passenger : | 2+3,3+3 | ||
| Close to the departure angle: | 27/18.5 | Rear suspension : | 1015/1475 | |
| Maximum speed: | 100 | |||
| JMC Aerial Platform Truck,High Working Truck | ||||
JMC Aerial Platform Truck,High Working Truck
| JMC High Working Truck chassis JMC High Working Truck chassis JX1060TSG23Engine Specification | |||
| Engine Model | Engine Manufacturer | Displacement (ML) | Power (ML) |
| ISB3.9-140E40A | Jiangling motors co., LTD | 2771 | 85 |
