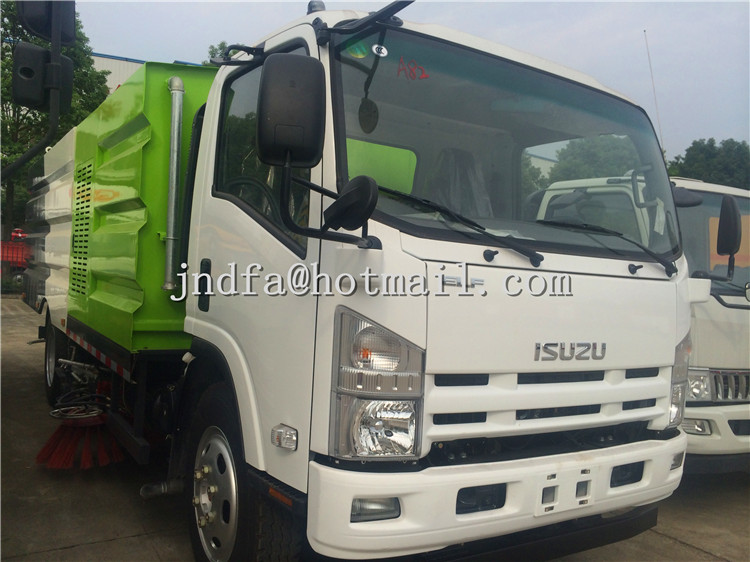

ISUZU Sweeper Vacuum Road Truck,Street Sweeper Truck
ISUZU Sweeper Vacuum Road Truck,Street Sweeper Truck
ISUZUStreet Sweeper Truck Engine Model 4KH1-TCG40 ,88kw ,119HP, 2999CC
JDFtruck is the Chinese Street Sweeper Truck manufacturer ISUZU Street Sweeper Truck quality have beed approved by CCC and ISO9001:2000 quality certificate ,Contact us: jndfa@hotmail.com.
Our ISUZU Street Sweeper Truck have a wide range of chassis brand optional , different load volume to choose .
| Vehicle Name: |
ISUZU vacuum sweeper |
Vehicle Category: |
ISUZU Street Sweeper Truck |
| Chinese Brand: |
ISUZU JDFTRUCK |
English brand : |
ISUZU JDFTRUCK |
| Notice batch : |
|
Exemption: |
No |
| Engine |
Engine Manufacturer |
Displacement (ml) |
Power (kw) |
| 4KH1-TCG40 |
Isuzu isuzu (chongqing) engine co., LTD |
2999 |
88 |
| Engine brand : |
ISUZU |
Fuel type: |
Diesel (mm) |
| Dimensions: |
6190 x1990 x 2590(mm) |
Compartment Size : |
× × (mm) |
| The total mass : |
7300Kg) |
Payload: |
0 |
| Curb weight: |
5020(Kg) |
Rated Quality: |
2150(Kg) |
| Quality Trailer : |
(kg) |
Semitrailer saddle : |
|
| Rated capacity : |
( People ) |
Cab seats : |
3( People ) |
| Approach / departure angle : |
24/15(°) |
Front / rear overhang : |
1015/1815(mm) |
| Axle load: |
2580/4720 |
Wheelbase: |
3360(mm) |
| Number of axes: |
2 |
Maximum speed: |
105(km/h) |
| Fuel consumption: |
|
Spring: |
8/6+5 |
| Number of tires : |
6 |
Tire Size: |
7.00-16 14PR,7.00R16 14PR |
| Front track: |
1504 |
Rear track: |
1425 |
| Steering Type : |
Steering wheel |
Starting method: |
|
| Chassis Emission standard: |
GB3847-2005, GB17691-2005 National |
| Transmission Type: |
Steering wheel |
According to the standard : |
|
| Logo Enterprises : |
JDFtruck |
Release date: |
20160919 |
| Vehicle Notes : |
ISUZU Sweeper Vacuum Road Truck,Street Sweeper Truck |
ISUZU Sweeper Vacuum Road Truck,Street Sweeper Truck Chassis
| ISUZU truck chassis |ISUZU truck chassis QL1070A1HAY |
| Company Name : |
ISUZU Motor Co., Ltd. |
|
| Chassis Type: |
QL1070A1HAY |
Chassis Category: |
II |
|
| Product Name: |
Truck chassis |
Product Brand: |
ISUZU |
|
| Zip Code: |
|
Catalog number : |
3 |
|
| Specifications: |
|
|
| Fuel Type: |
Diesel fuel |
According to the standard : |
GB17691-2005(Ⅳ),GB3847-2005 |
|
| Steering Type : |
Steering wheel |
|
| Number of axes: |
2 |
Wheelbase: |
3360,3308 |
|
| Spring: |
8/6+5 |
Number of tires : |
6 |
|
| Tire Size: |
7.00-16 14PR,7.00R16 14PR |
Tread : |
Front track 1504Rear track 1425 |
|
| The total mass : |
7300 |
|
| Curb weight: |
5020 |
Quality Trailer : |
|
|
| Semitrailer saddle : |
|
Front passenger : |
2+3 |
|
| Close to the departure angle: |
24/15 |
Rear suspension : |
1015/1815 |
|
| Maximum speed: |
105 |
ISUZU Sweeper Vacuum Road Truck,Street Sweeper Truck
| ISUZU Street Sweeper Truck chassis JAC Street Sweeper Truck chassis QL1070A1HAY Engine Specification |
| Engine Model |
Engine Manufacturer |
Displacement (ML) |
Power (ML) |
| WP3Q130E50 |
Isuzu isuzu (chongqing) engine co., LTD |
2999 |
88 |
