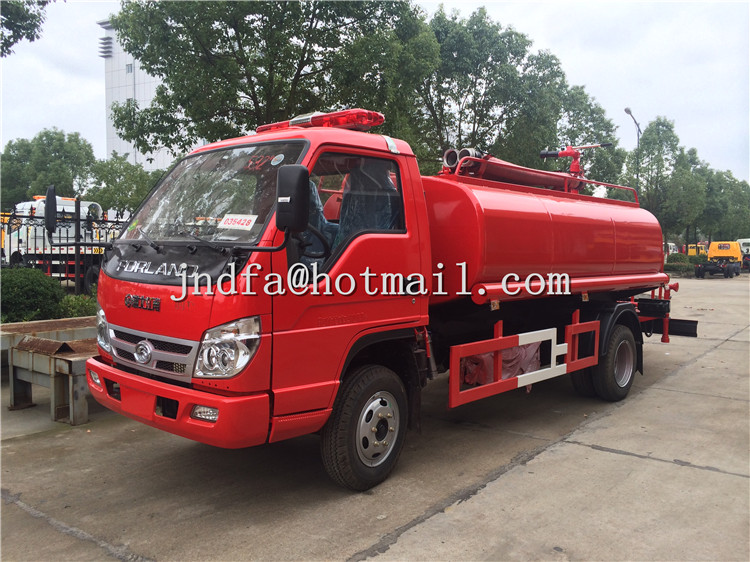

FORLAND Water Tank ,Water Fire Truck
FORLAND Water Tank ,Water Fire Truck
FORLAND Water Tank Engine Model 4A1-68C40 ,50kw ,68HP, 1809CC
JDFtruck is the Chinese FORLAND Water Tank manufacturer , FORLAND Water Tank quality have beed approved by CCC and ISO9001:2000 quality certificate ,Contact us: jndfa@hotmail.com.
Our FORLAND Water Tank have a wide range of chassis brand optional , different load volume to choose .
1. As a mini water-foam fire tender can access to the narrow rural roads and community freely, more useful in countries and towns.
2. It has a full function large fire engine fire. Both can be used for fire fighting and water supply for dry areas.
3. The price of small fire truck is much cheaper and produce time short.
4. 1000l-3000l small water fire truck can put in container that to reduce sea water corrosion
| Vehicle Name: | FORLAND Water Tank | Vehicle Category: | FORLAND Water Tank | ||
| Chinese Brand: | FORLAND JDFTRUCK | English brand : | FORLAND JDFTRUCK | ||
| Notice batch : | 287 | Exemption: | No | ||
| Engine | Engine Manufacturer | Displacement (ml) | Power (kw) | ||
| 4A1-68C40 | Anhui QuanChai power co., LTD | 1809 | 50 | ||
| Engine brand : | FORLAND | Fuel type: | Diesel (mm) | ||
| Dimensions: | 4550×1700×1990(mm) | Compartment Size : | × × (mm) | ||
| The total mass : | 2730(Kg) | Payload: | 0 | ||
| Curb weight: | 2000(Kg) | Rated Quality: | 2000(Kg) | ||
| Quality Trailer : | (kg) | Semitrailer saddle : | |||
| Rated capacity : | ( People ) | Cab seats : | 2( People ) | ||
| Approach / departure angle : | 22/19(°) | Front / rear overhang : | 990/860(mm) | ||
| Axle load: | 1450/2170 | Wheelbase: | 2300(mm) | ||
| Number of axes: | 2 | Maximum speed: | 90(km/h) | ||
| Fuel consumption: | Spring: | 5/3+2 | |||
| Number of tires : | 6 | Tire Size: | 6.00-13 8PR | ||
| Front track: | 1300 | Rear track: | 1240 | ||
| Brake Front: | After braking : | ||||
| Built before the parade : | After operating system : | ||||
| Steering Type : | Steering wheel | Starting method: | |||
| Chassis Emission standard: | GB17691-2005（Ⅳ）,GB3847-2005 | ||||
| Transmission Type: | According to the standard : | ||||
| Vin Vehicle Identification Number: | |||||
| Logo Enterprises : | JDFtruck | Release date: | 20160919 | ||
| Vehicle Notes : | FORLAND Water Tank ,Water Fire Truck | ||||
FORLAND Water Tank ,Water Fire Truck Chassis
| FORLAND truck chassis | FORLAND truck chassis BJ1042V9JA5-X2 | ||||
| Company Name : | FORLAND Motor Co., Ltd. | |||
| Chassis Type: | BJ1042V9JA5-X2 | Chassis Category: | II | |
| Product Name: | Truck chassis | Product Brand: | FORLAND | |
| Zip Code: | Catalog number : | |||
| Specifications: | ||||
| Fuel Type: | Diesel fuel | According to the standard : | GB17691-2005（Ⅳ）,GB3847-2005 | |
| Steering Type : | Steering wheel | |||
| Number of axes: | 2 | Wheelbase: | 2600 | |
| Spring: | 5/3+2 | Number of tires : | 6 | |
| Tire Size: | 6.00-13 8PR | Tread : | Front track 1300 Rear track1240 | |
| The total mass : | 3620 | |||
| Curb weight: | 2000 | Quality Trailer : | ||
| Semitrailer saddle : | Front passenger : | 2 | ||
| Close to the departure angle: | 21/17 | Rear suspension : | 990/860 | |
| Maximum speed: | 90 | |||
| Picture: | FORLAND Water Tank ,Water Fire Truck | |||
FORLAND Water Tank ,Water Fire Truck
| FORLAND truck chassis |FORLAND truck chassis BJ1042V9JA5-X2 Engine Specification | |||
| Engine Model | Engine Manufacturer | Displacement (ML) | Power (ML) |
| 4A1-68C40 | Anhui QuanChai power co., LTD | 1809 | 50 |
| Identification code : | LGDVH81C××××××××× | ||
| Other: | FORLAND Water Tank ,Water Fire Truck | ||
