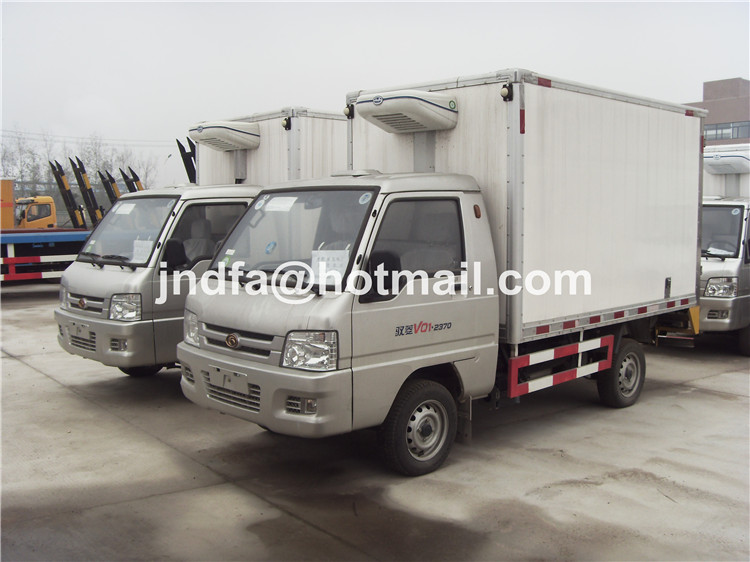

Forland Refrigerator Truck,Freezer Truck,Ice Truck.frozen truck

Forland Refrigerator Truck,Freezer Truck,Ice Truck

Forland Refrigerator Truck Engine 4W12M1 , 125kw ,85HP,1206 CC

JDFtruck is the Chinese Refrigerator Truck manufacturer Forland Refrigerator Truck quality have beed approved by CCC and ISO9001:2000 quality certificate ,Contact us: jndfa@hotmail.com.

Our Forland Refrigerator Truck have a wide range of chassis brand optional , different load volume to choose .

Vehicle Name:	Forland Refrigerator Truck		Vehicle Category:	Forland Refrigerator Truck
Chinese Brand:	Forland JDFTRUCK		English brand :	Forland JDFTRUCK
Notice batch :	284		Exemption:	No
Engine	Engine Manufacturer		Displacement (ml)	Power (kw)
4W12M1	Foton motor co., LTD		1206	63
Engine brand :	Forland		Fuel type:	Gasoline (mm)
Dimensions:	4450×1550,1620×2400(mm)		Compartment Size :	× × (mm)
The total mass :	1905(Kg)		Payload:	0
Curb weight:	1280(Kg)		Rated Quality:	495(Kg)
Quality Trailer :	(kg)		Semitrailer saddle :
Rated capacity :	( People )		Cab seats :	3( People )
Approach / departure angle :	24/28(°)		Front / rear overhang :	895/1185(mm)
Axle load:	725/1180		Wheelbase:	2370,2700(mm)
Number of axes:	2		Maximum speed:	90(km/h)
Fuel consumption:	7.0		Spring:	-/5
Number of tires :	4		Tire Size:	165R13LT 8PR
Front track:	1260		Rear track:	1260,1340
Chassis Emission standard:	GB17691-2005, GB3847-2005 National
Transmission Type:	Steering wheel	According to the standard :

Logo Enterprises :	JDFtruck	Release date:		20160919
Vehicle Notes :	Forland Refrigerator Truck,Freezer Truck,Ice Truck

Forland Refrigerator Truck,Freezer Truck,Ice Truck Chassis

Forland truck chassis \|Forland truck chassis BJ1020V3JV4-H3
GJ2Company Name :	Forland Motor Co., Ltd.
Chassis Type:	BJ1020V3JV4-H3	Chassis Category:	II
Product Name:	Truck chassis	Product Brand:	Forland
Zip Code:		Catalog number :	3
Fuel Type:	Gasoline	According to the standard :	GB17691-2005(Ⅳ),GB3847-2005
Steering Type :	Steering wheel
Number of axes:	2	Wheelbase:	2370,2700
Spring:	-/5	Number of tires :	4
Tire Size:	165R13LT 8PR	Tread :	Front track 1260 Rear track 1260,1340
The total mass :	1905
Curb weight:	854	Quality Trailer :
Semitrailer saddle :		Front passenger :	3
Close to the departure angle:	24/28	Rear suspension :	895/840
Maximum speed:	110
	Forland Refrigerator Truck,Freezer Truck,Ice Truck

Forland Refrigerator Truck,Freezer Truck,Ice Truck

Forland Refrigerator Truck chassis Forland Refrigerator Truck chassis BJ1020V3JV4-H3 Engine Specification
Engine Model	Engine Manufacturer	Displacement (ML)	Power (ML)
4W12M1	Foton motor co., LTD	1206	63
