Project Description
Dongfeng Compression Garbage Truck,Compactor Garbage Truck
Dongfeng Compression Garbage Truck,Compactor Garbage Truck
Dongfeng Compression Garbage Truck Engine CY4102-C3C , 88kw ,119HP,3856 CC
JDFtruck is the Chinese Compression Garbage Trucks manufacturer Dongfeng Compression Garbage Truck quality have beed approved by CCC and ISO9001:2000 quality certificate ,Contact us: jndfa@hotmail.com.
Our DongFeng Compression Garbage Truck have a wide range of chassis brand optional , different load volume to choose .
| Vehicle Name: | Dongfeng Compression Garbage Truck | Vehicle Category: | Dongfeng Compression Garbage Truck | ||
| Chinese Brand: | Dongfeng JDFTRUCK | English brand : | Dongfeng JDFTRUCK | ||
| Notice batch : | 240 | Exemption: | No | ||
| Engine | Engine Manufacturer | Displacement (ml) | Power (kw) | ||
| CY4102-C3C | Dongfeng chaoyang forward power co., LTD | 3856 | 88 | ||
| Engine brand : | Dongfeng | Fuel type: | Diesel (mm) | ||
| Dimensions: | 6320×2150×2800(mm) | Compartment Size : | × × (mm) | ||
| The total mass : | 7650(Kg) | Payload: | 0 | ||
| Curb weight: | 5055(Kg) | Rated Quality: | 2400(Kg) | ||
| Quality Trailer : | (kg) | Semitrailer saddle : | |||
| Rated capacity : | ( People ) | Cab seats : | 3( People ) | ||
| Approach / departure angle : | 24/12(°) | Front / rear overhang : | 1210/2010(mm) | ||
| Axle load: | 2970/4680 | Wheelbase: | 3100(mm) | ||
| Number of axes: | 2 | Maximum speed: | 95(km/h) | ||
| Fuel consumption: | Spring: | 7/8+5,8/10+7 | |||
| Number of tires : | 6 | Tire Size: | 7.50-16,8.25-16,7.50R16,8.25R16 | ||
| Front track: | 1770 | Rear track: | 1602 | ||
| Brake Front: | After braking : | ||||
| Built before the parade : | After operating system : | ||||
| Steering Type : | Steering wheel | Starting method: | |||
| Chassis Emission standard: | GB3847-2005(Ⅲ),GB17691-2005 | ||||
| Transmission Type: | According to the standard : | ||||
| Vin Vehicle Identification Number: | LGDCS91F××××××××× | ||||
| Logo Enterprises : | JDFtruck | Release date: | 20160919 | ||
| Vehicle Notes : | Dongfeng Compression Garbage Truck,Compactor Garbage Truck | ||||
Dongfeng Compression Garbage Truck,Compactor Garbage Truck Chassis
| Dongfeng truck chassis |Dongfeng truck chassis EQ1081TJ12D1 | ||||
| Company Name : | Dongfeng Motor Co., Ltd. | |||
| Chassis Type: | EQ1081TJ12D1 | Chassis Category: | II | |
| Product Name: | Truck chassis | Product Brand: | Dongfeng | |
| Zip Code: | 441004 | Catalog number : | 3 | |
| Specifications: | Length:5800Width:2140 Height: 2300,2450 | |||
| Fuel Type: | Diesel fuel | According to the standard : | GB3847-2005(Ⅲ),GB17691-2005 | |
| Steering Type : | Steering wheel | |||
| Number of axes: | 2 | Wheelbase: | 3360 | |
| Spring: | 7/8+5,8/10+7 | Number of tires : | 6 | |
| Tire Size: | 7.50-16,8.25-16,7.50R16,8.25R16 | Tread : | Front track 1770 Rear track1602 | |
| The total mass : | 8495 | |||
| Curb weight: | 3000 | Quality Trailer : | ||
| Semitrailer saddle : | Front passenger : | 3 | ||
| Close to the departure angle: | 24/15 | Rear suspension : | 1210/1490 | |
| Maximum speed: | 95 | |||

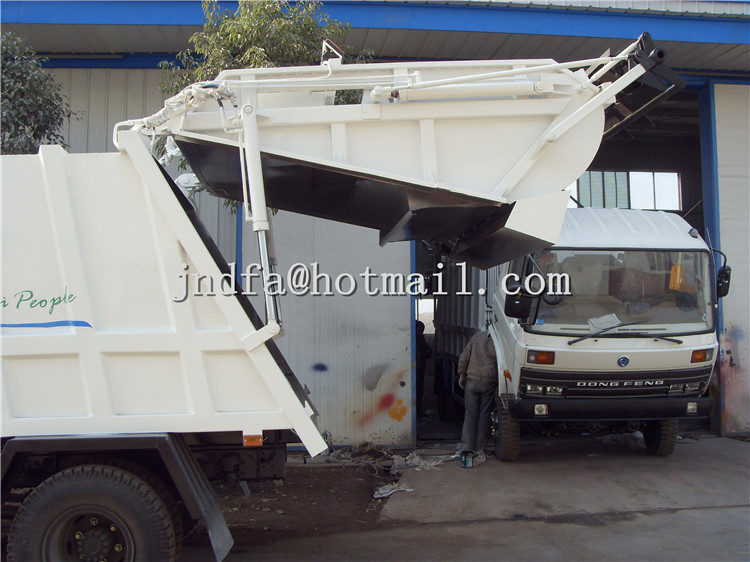

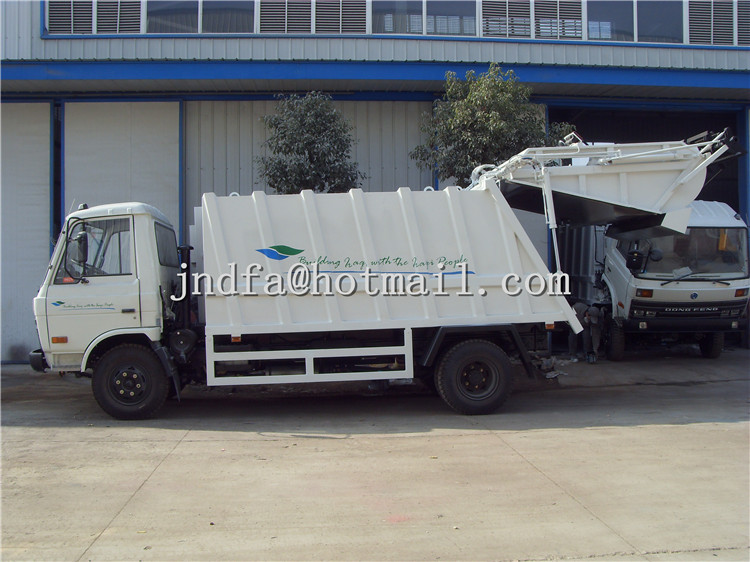

| Picture: | Dongfeng Compression Garbage Truck,Compactor Garbage Truck | |||
Dongfeng Compression Garbage Truck,Compactor Garbage Truck
| Dongfeng truck chassis |Dongfeng truck chassis EQ1081TJ12D1 Engine Specification | |||
| Engine Model | Jiangxi isuzu engine co., LTD | Displacement (ML) | Power (ML) |
| CY4102-C3C | Dongfeng chaoyang forward power co., LTD | 3856 | 88 |
| Identification code : | LGDCS91F××××××××× | ||
| Other: | Dongfeng Compression Garbage Truck,Compactor Garbage Truck | ||
