Project Description
hook lift garbage truck，garbage truck，arm roll truck

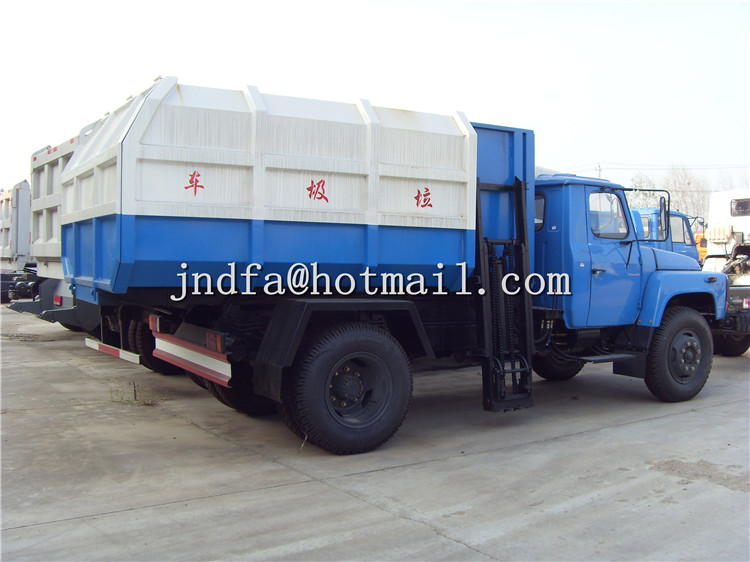

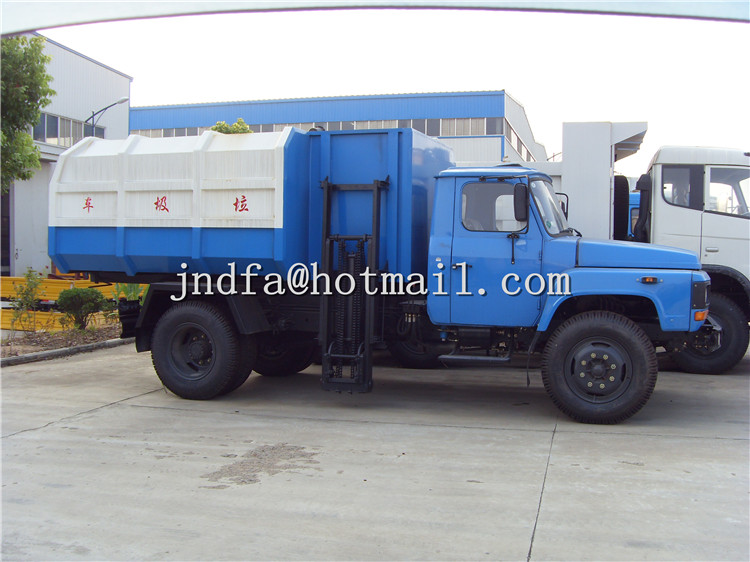

DongFeng 140 Hook Lift Garbage Truck
Dongfeng Hook Lift Garbage Truck Engine YC4E140-30 ,142kw ,HP,4260 CC
JDFtruck is the Chinese Hook Lift Garbage Truck manufacturer Dongfeng Hook Lift Garbage Truck quality have beed approved by CCC and ISO9001:2000 quality certificate ,Contact us: jndfa@hotmail.com.
OurDongFeng 140 Hook Lift Garbage Truckhave a wide range of chassis brand optional , different load volume to choose .
| Vehicle Name: | Dongfeng Hook Lift Garbage Truck | Vehicle Category: | Dongfeng Hook Lift Garbage Truck | ||
| Chinese Brand: | DongFeng JDFTRUCK | English brand : | DongFeng JDFTRUCK | ||
| Notice batch : | Exemption: | No | |||
| Engine | Engine Manufacturer | Displacement (ml) | Power (kw) | ||
| YC4E140-30 | Guangxi yuchai machinery co., LTD | 4260 | 105 | ||
| Engine brand : | Dongfeng | Fuel type: | Diesel (mm) | ||
| Dimensions: | 6850×2440×2720(mm) | Compartment Size : | × × (mm) | ||
| The total mass : | 9910(Kg) | Payload: | 0 | ||
| Curb weight: | 5715(Kg) | Rated Quality: | 4000(Kg) | ||
| Quality Trailer : | (kg) | Semitrailer saddle : | |||
| Rated capacity : | ( People ) | Cab seats : | 3( People ) | ||
| Approach / departure angle : | 34/19(°) | Front / rear overhang : | 1065/1785(mm) | ||
| Axle load: | 4185/5765 | Wheelbase: | 3950(mm) | ||
| Number of axes: | 2 | Maximum speed: | 85(km/h) | ||
| Fuel consumption: | Spring: | 9/12+9 | |||
| Number of tires : | 6 | Tire Size: | 9.00-20 | ||
| Front track: | 1810 | Rear track: | 1800 | ||
| Steering Type : | Steering wheel | Starting method: | |||
| Chassis Emission standard: | GB3847-2005, GB17691-2005 National | ||||
| Transmission Type: | Steering wheel | According to the standard : | |||
| Logo Enterprises : | JDFtruck | Release date: | 20160919 | ||
DongFeng Hook Lift Garbage Truck,Garbage Truck,Arm Roll Truck Chassis
| DongFeng truck chassis |DongFeng truck chassisEQ1102FLJ5 | ||||
| Company Name : | DongFeng Motor Co., Ltd. | |||
| Chassis Type: | EQ1102FLJ5 | Chassis Category: | II | |
| Product Name: | Truck chassis | Product Brand: | DongFeng | |
| Zip Code: | Catalog number : | 3 | ||
| Fuel Type: | Diesel fuel | According to the standard : | GB17691-2005(Ⅳ),GB3847-2005 | |
| Steering Type : | Steering wheel | |||
| Number of axes: | 2 | Wheelbase: | 3950 | |
| Spring: | 9/12+9 | Number of tires : | 6 | |
| Tire Size: | 9.00-20 | Tread : | Front track1810Rear track1800 | |
| The total mass : | 9910 | |||
| Curb weight: | 5715 | Quality Trailer : | ||
| Semitrailer saddle : | Front passenger : | 3 | ||
| Close to the departure angle: | 34/19 | Rear suspension : | 1065/1785 | |
| Maximum speed: | 85 | |||
| hook lift garbage truck，garbage truck，arm roll truck | ||||
hook lift garbage truck，garbage truck，arm roll truck
| Dongfeng Hook Lift Garbage Truck chassis Dongfeng Hook Lift Garbage Truck chassisEQ1102FLJ5 Engine Specification | |||
| Engine Model | Engine Manufacturer | Displacement (ML) | Power (ML) |
| YC4E140-30 | Guangxi yuchai machinery co., LTD | 4260 | 105 |
