Project Description
Dongfeng 140 Fire Truck ,Foam Fire Truck
Dongfeng 140 Fire Truck ,Foam Fire Truck
Dongfeng Fire Truck Engine Model EQ6100-30 ,99kw ,134HP, 5420CC
JDF truck is the ChineseDongfeng Fire Truck manufacturer , Dongfeng Fire Truck quality have beed approved by CCC and ISO9001:2000 quality certificate ,Contact us: jndfa@hotmail.com.
OurDongfeng Fire Truck have a wide range of chassis brand optional , different load volume to choose .
| Vehicle Name: | Dongfeng Fire Truck | Vehicle Category: | Dongfeng Fire Truck | ||
| Chinese Brand: | Dongfeng JDFTRUCK | English brand : | Dongfeng JDFTRUCK | ||
| Notice batch : | 229 | Exemption: | No | ||
| Engine | Engine Manufacturer | Displacement (ml) | Power (kw) | ||
| EQ6100-30 | Chongqing ISUZU | 5420 | 99 | ||
| Engine brand : | Dongfeng | Fuel type: | Diesel (mm) | ||
| Dimensions: | 7020×2400×3080(mm) | Compartment Size : | × × (mm) | ||
| The total mass : | 9320(Kg) | Payload: | 0 | ||
| Curb weight: | 5600(Kg) | Rated Quality: | 3270(Kg) | ||
| Quality Trailer : | (kg) | Semitrailer saddle : | |||
| Rated capacity : | ( People ) | Cab seats : | 3+3( People ) | ||
| Approach / departure angle : | 34/17(°) | Front / rear overhang : | 1065/1940(mm) | ||
| Axle load: | 2420/6900 | Wheelbase: | 3950 (mm) | ||
| Number of axes: | 2 | Maximum speed: | 90(km/h) | ||
| Fuel consumption: | Spring: | 8/11+8 | |||
| Number of tires : | 6 | Tire Size: | 9.00-20,9.00R20 | ||
| Front track: | 1800 | Rear track: | 1800 | ||
| Brake Front: | After braking : | ||||
| Built before the parade : | After operating system : | ||||
| Steering Type : | Steering wheel | Starting method: | |||
| Chassis Emission standard: | GB11340-2005, GB14763-2005,GB18285-2005, GB14762-2008 National | ||||
| Transmission Type: | According to the standard : | ||||
| Vin Vehicle Identification Number: | LGAW1412××××××××× | ||||
| Logo Enterprises : | JDFtruck | Release date: | 20160919 | ||
| Vehicle Notes : | Dongfeng 140 Fire Truck ,Foam Fire Truck | ||||
Dongfeng 140 Fire Truck ,Foam Fire Truck Chassis
| Dongfeng truck chassis | Dongfeng truck chassis EQ1092F3GJ2 | ||||
| Company Name : | Dongfeng Motor Co., Ltd. | |||
| Chassis Type: | EQ1092F3GJ2 | Chassis Category: | II | |
| Product Name: | Truck chassis | Product Brand: | Dongfeng | |
| Zip Code: | 430056 | Catalog number : | 3 | |
| Specifications: | Length:5900 Width: 1880 Height: 2220 | |||
| Fuel Type: | Diesel fuel | According to the standard : | GB11340-2005(Ⅲ), GB14763-2005,GB18285-2005, GB14762-2008 | |
| Steering Type : | Steering wheel | |||
| Number of axes: | 2 | Wheelbase: | 3950 | |
| Spring: | 8/11+8 | Number of tires : | 6 | |
| Tire Size: | 9.00-20,9.00R20 | Tread : | Front track 1800 Rear track 1800 | |
| The total mass : | 9465 | |||
| Curb weight: | 3650 | Quality Trailer : | ||
| Semitrailer saddle : | Front passenger : | 3 | ||
| Close to the departure angle: | 34/19 | Rear suspension : | 1065/1590 | |
| Maximum speed: | 90 | |||

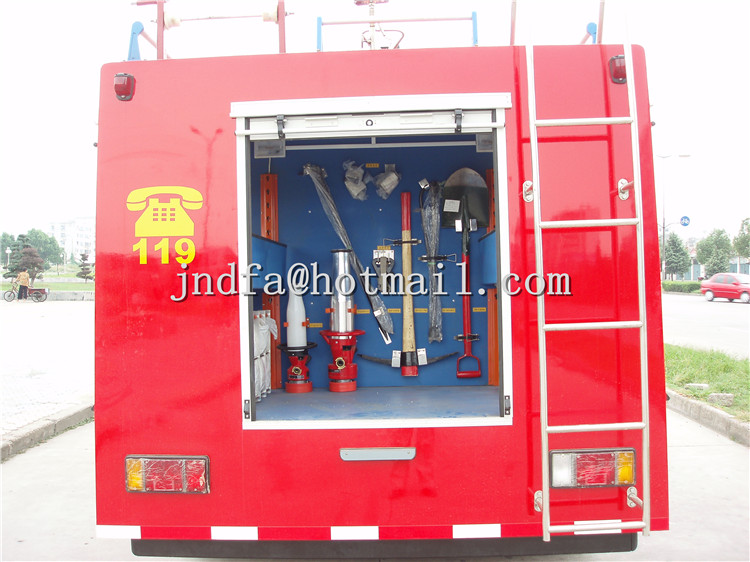

| Picture: | Dongfeng 140 Fire Truck ,Foam Fire Truck | |||
Dongfeng 140 Fire Truck ,Foam Fire Truck
| Dongfeng fire truck chassis |Dongfeng fire truck chassis EQ1092F3GJ2 Engine Specification | |||
| Engine Model | Engine Manufacturer | Displacement (ML) | Power (ML) |
| EQ6100-30 | ISUZU | 5420 | 99 |
| Identification code : | LGAW1412××××××××× | ||
| Other: | Dongfeng 140 Fire Truck ,Foam Fire Truck | ||
