Project Description

Double cabin 1000L to 2000L water fire engine for edifice

Product Description

[Main technical parameters]
Total mass (Kg): 6545
Service quality (Kg): 4330
Rated load quality (Kg): 1995
Tank volume (m3): 1.995
Dimensions (mm): 6820x2000x2820
Number of riders in the cab (person): 2+3
Approach angle / departure angle (°): 24/12
Front suspension/rear suspension (mm): 1015/1890
Number of axes: 2
Wheelbase (mm): 3815
Shaft charge (Kg): 2080/4620
Speed (Km/h): 90
Others: Extension: 100mm; Volume of the tank: 1.995 cubic meters; Tank size (length × width × height): 1924 × 920 × 1183mm (mm); firefighters according to 75 kg / person; side protection and rear lower protection Device material: Q235, monolithic structure; rear lower protective device height from the ground: 395mm.



[chassis technical parameters]
Dimensions (mm): 6645x1880x2160
Number of tires: 6
Approach angle/departure angle (°): 24/14
Tire specification: 7.00-16
Number of leaf springs: 8/6+5
Front track (mm): 1504
Rear track (mm): 1425
Fuel Type: Diesel
Emission standard: euro IV
Engine Model: 4KH1-TCG40
Engine manufacturer: Qingling Isuzu (Chongqing) Engine Co., Ltd.
Displacement (ml): 2999
Power (Kw): 88

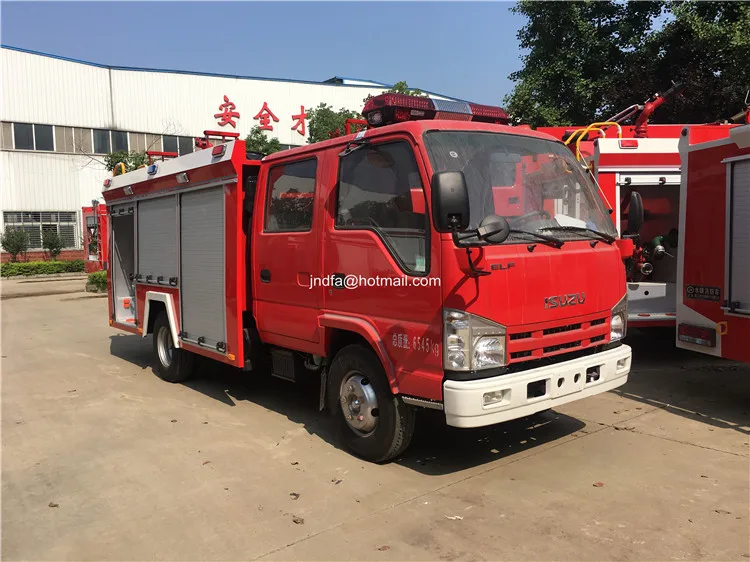

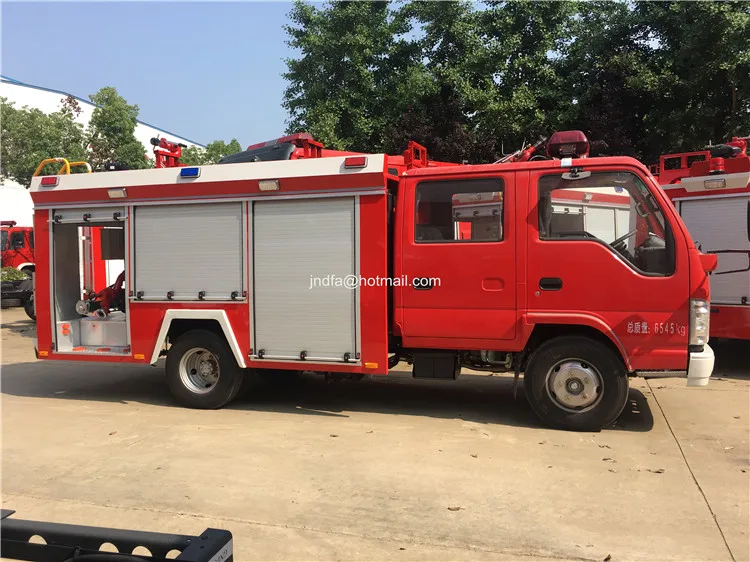

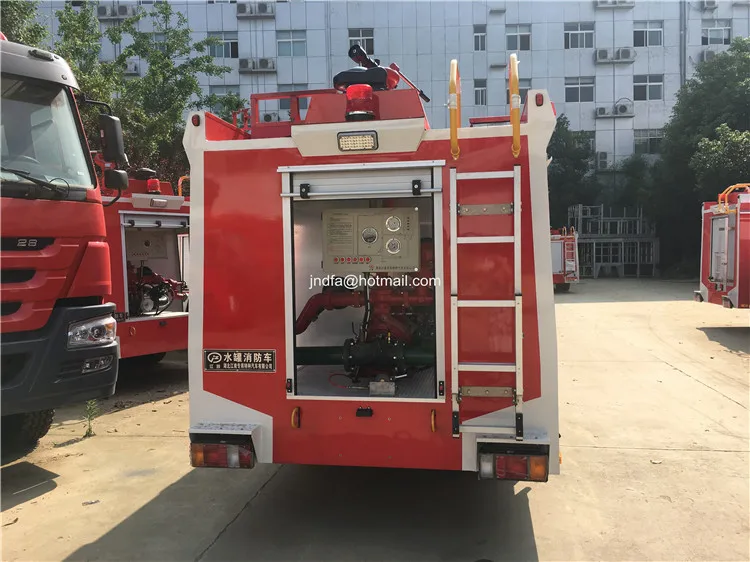

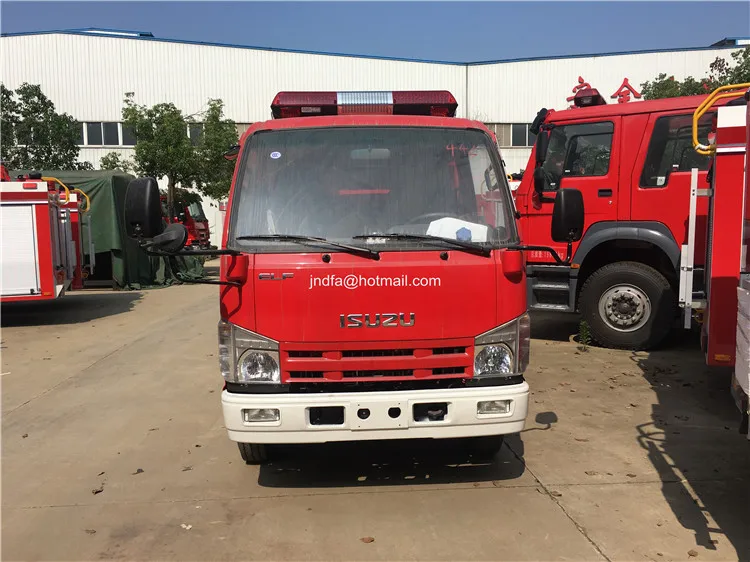

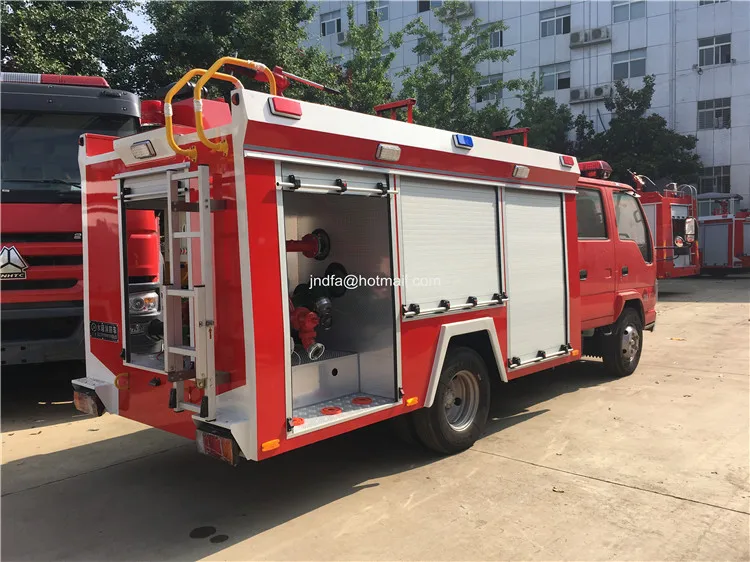

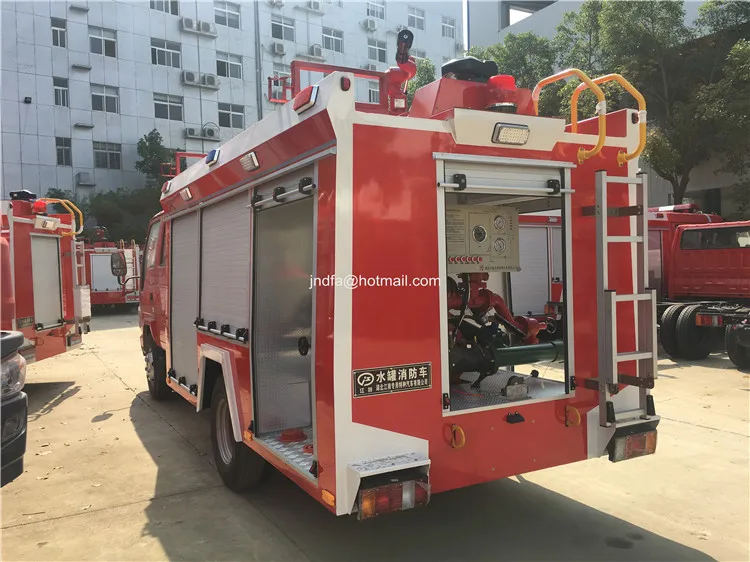

2000L water fire engine1.JPG2000L water fire engine2.JPG2000L water fire engine3.JPG2000L water fire engine4.JPG2000L water fire engine5.JPG2000L water fire engine6.JPG

JDF Company

Company and Certificate.jpg

Our factory product line:

Fire fighting truck , Aerial working platform truck , Road wrecker / tow truck / recovery truck , Truck mounted crane , road sweeper ,  Hooklift garbage truck , Skip loader waster truck , Refuse collection truck , Trash compactor truck , Refrigerator truck , Oil/fuel tank truck , water/sprinkler truck , Dump truck , Concrete mixer truck , Cement tank transport truck , Semi-trailer .



Order process

Order process

Trade Shows

Export

Advantages

Product  advantage:

1.Factory export department directly sale
2, Export experience more than 12 years

3.Cheap / competitive price. good price high quanlity ,you get more than your paid
4.With CCC,ISO9001
5. The heart of the service, rational design and simple to handle
